Flugzeug

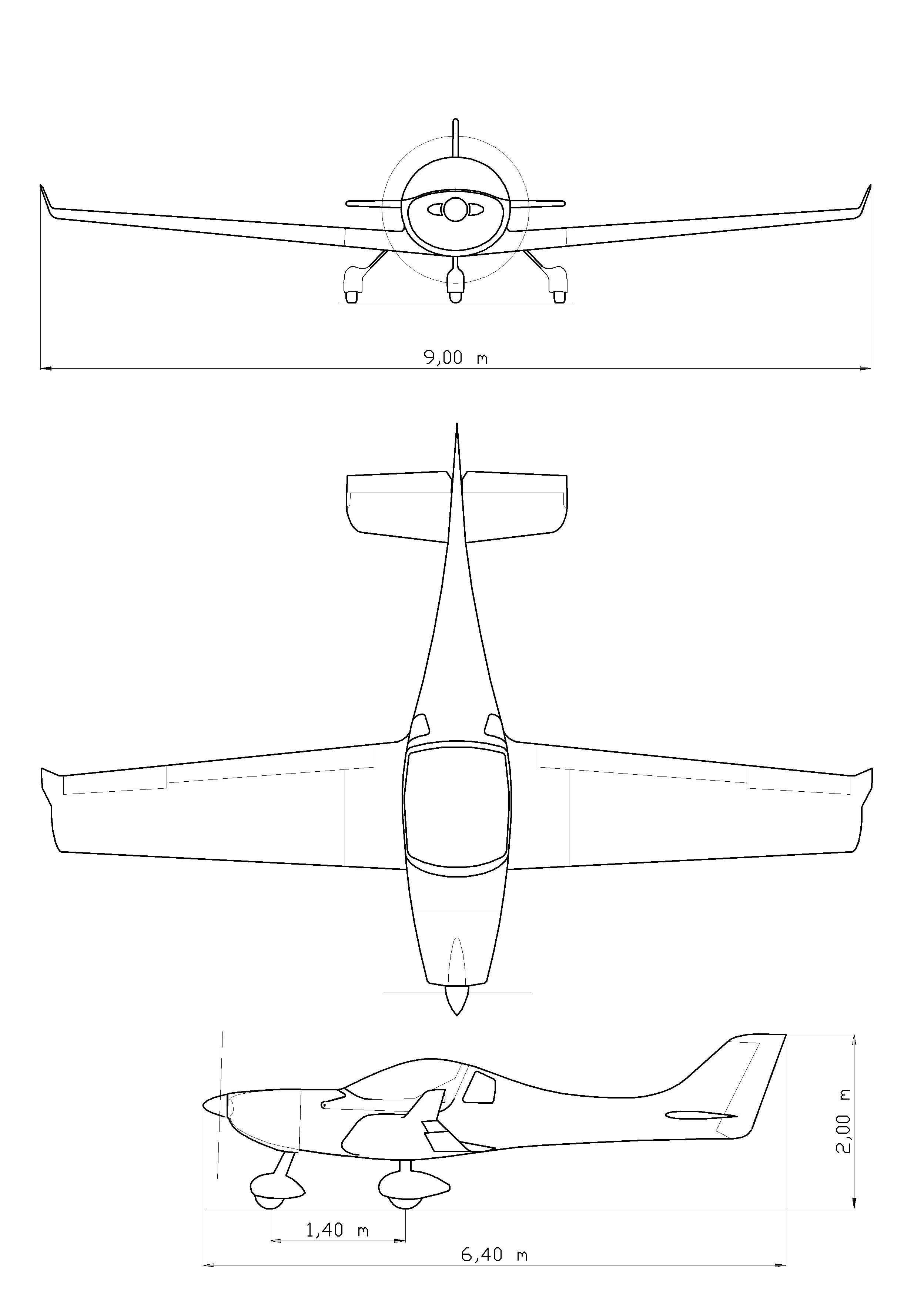

Dimensions and weights Performance
Wing span 9,00 m Stall speed 65 km/hod
Lenght 6,40 m gt;Max. speed with flaps 140 km/hod
Height 2,00 m Cruise speed 220 km/hod with fixed LG 250 km/hod with RTG LG
Cockpit width 1,15 m Never exceed speed 280 km/hod
Fuel capacity 75 – 125 l Rate of climb 7 m/s
Empty weight 260,00 kg Range 1600 km
The values are valid for the plane in UL.Fuel tank of 28 litters can be special ordered for Taiwan ultra light regulation
Das Weltumrunderflugzeug / The Earthrounder-Plane: Callsign: OE-7104 Name of plane: Spirit of Africa Cruising Speed: 130 kts / 250 km/h Empty weight: 372 kg Max. take-off-weight: 750 kg Fuel on bord: 350 liters / 92.5 Gal Endurance: 19,5 hours Instruments on bord:
  • VOR
  • Mode-S Transponder
  • COM
  • HF
  • Stormscope
  • ELT
  • EFIS
  • Constant Speed Prop
  • Retractable Gear
  • Flymap L GPS with special made vector-charts worldwide
  • Garmin 795 with worldwide database
  • Garmin 296
  • iPad 2 with Jepp FD-App with worldwide approach-charts
  • Liferaft
  • Little John’s Toilet
  • TruTrak 2 axis Auto-Pilot
  • TL-Fuel-Flow-Computer
  • Power Flam Anti Colision Warning
  • Tracking-System Spot
  • Personal ELT

https://www.youtube.com/watch?v=gzxQaG7TZtE
